CNC Router Bits
Precision router bits for CNC routers used in woodworking, aluminum cutting, plastics, composites, and sign-making applications.
- • Max chip evacuation
- • For aluminum & plastics
- Single flute router bits with large gullet design for high-speed chip removal in aluminum, acrylic, polycarbonate, and non-ferrous materials.
- • Balanced cutting
- • For wood & composites

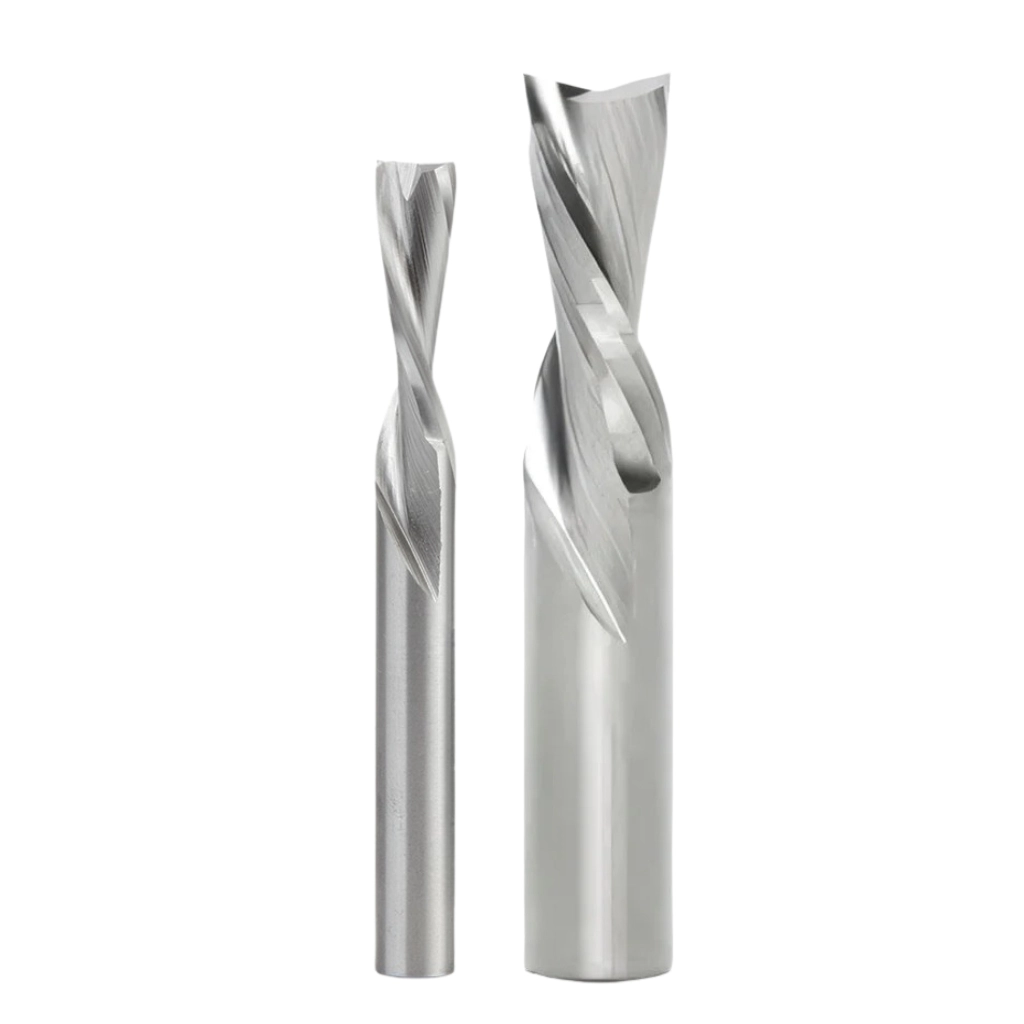

- General-purpose 2-flute router bits for woodworking, MDF, plywood, and composite board cutting with clean edge quality and good feed rates.
- • Up-cut + down-cut geometry
- • Clean top & bottom edges

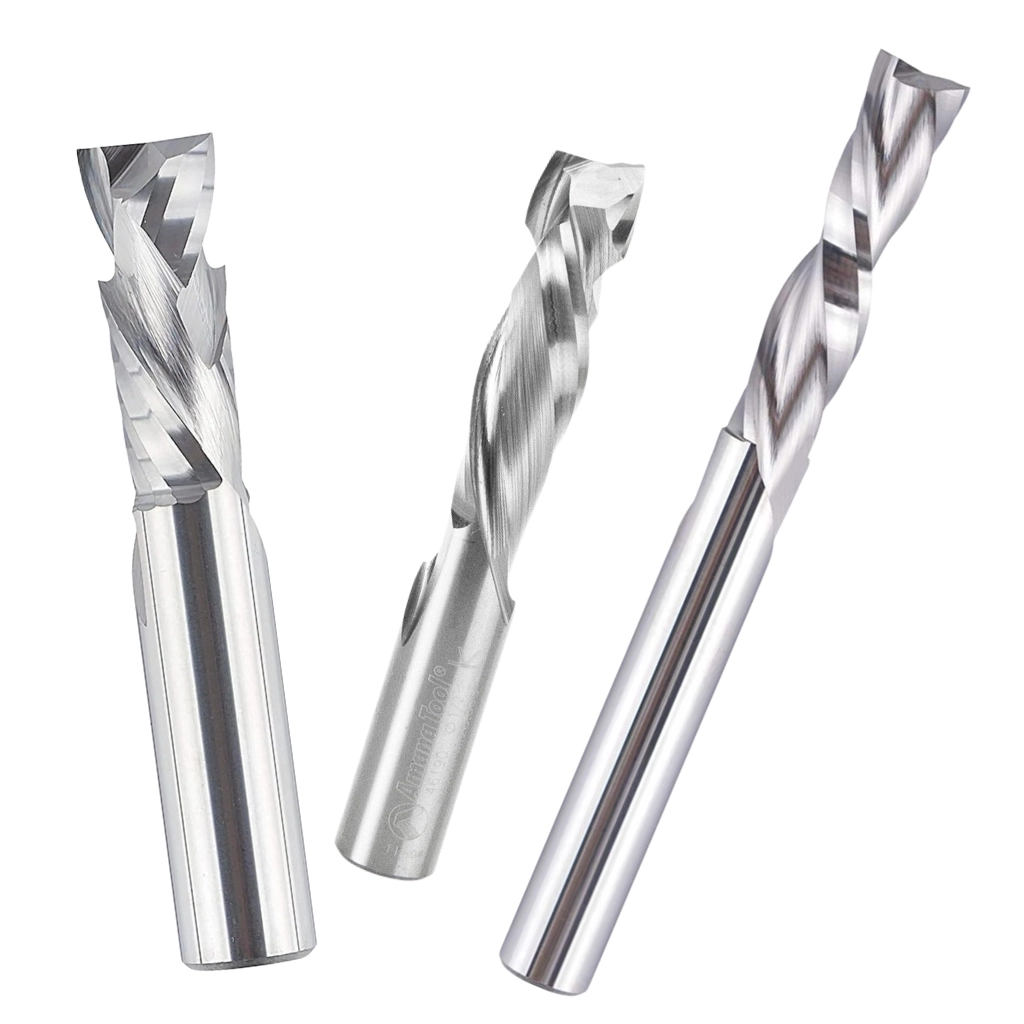

- Compression router bits combining up-cut and down-cut flutes for chip-free top and bottom edges when cutting double-sided laminates, melamine, and veneered boards.
Choosing the Right CNC Router Bit
Understanding router bit geometries, flute configurations, and material-specific designs for optimal cutting performance.
Flute Geometry & Material
Single flute bits offer maximum chip clearance for aluminum and plastics. 2-flute bits provide balanced cutting for wood and composites. Compression bits deliver clean edges on laminated materials.
Up-Cut vs. Down-Cut vs. Compression
Up-cut bits pull chips upward for aggressive cutting. Down-cut bits push chips down for clean top surfaces. Compression bits combine both for chip-free top and bottom edges on laminated panels and double-sided materials.
Shank Size & Tool Holding
Router bits are available with 1/4-inch, 1/2-inch, and 6mm, 8mm, 12mm shanks. Match shank diameter to your router collet capacity and cutting forces. Larger shanks provide greater rigidity for heavy cuts and larger diameter bits.
CNC Router Bit Specifications
Select the right router bit geometry, flute configuration, diameter, and shank size for your material and spindle. The table below summarises the standard CNC router bit options we stock in Dubai.
| Type | Best For | Cutting Diameter | Shank Size | Cutting Length | Materials |
|---|---|---|---|---|---|
| Single Flute | High-speed chip evacuation, slotting & pocketing | 3mm - 12mm | 1/4", 6mm, 8mm | 15mm - 40mm | Aluminum, acrylic, UHMW, brass, plastics |
| 2-Flute (Straight / Spiral) | Balanced cutting & finishing | 3mm - 16mm | 1/4", 1/2", 6mm, 8mm | 20mm - 50mm | Wood, MDF, plywood, plyboard, composite panels |
| Compression (Up + Down) | Chip-free edges on double-sided materials | 3mm - 12mm | 1/4", 1/2", 6mm, 8mm, 12mm | 20mm - 60mm | Double-sided laminate, melamine, veneered boards |
| 2-Flute Down-Cut | Clean top surfaces & light engraving | 3mm - 10mm | 1/4", 6mm, 8mm | 15mm - 40mm | Wood, plastics, soft composites |
| Carbide-Tipped / Solid Carbide | Extended tool life in abrasive materials | 3mm - 16mm | 1/4", 1/2", 6mm, 8mm | 15mm - 50mm | Hardwoods, composites, plastics with fillers |
CNC Router Bits in Dubai
Darwish Ali Hassan supplies a comprehensive range of CNC router bits in Dubai for woodworking shops, sign-makers, aluminum fabricators, plastics manufacturers, and composite processing facilities across the UAE. Our router bit inventory covers single flute, 2-flute, compression, and carbide-tipped designs for cutting, profiling, engraving, and finishing applications on CNC routers.
Single flute router bits with large chip gullets excel at high-speed cutting of aluminum, acrylic, polycarbonate, and other non-ferrous materials where chip evacuation is critical. 2-flute router bits provide balanced performance for general woodworking and composite board cutting. Compression router bits, with their combined up-cut and down-cut flute geometry, deliver chip-free edges on double-sided laminates, melamine-faced boards, and veneered panels.
Selecting the correct router bit type, flute geometry, diameter, and shank size is essential for achieving clean cuts, efficient chip removal, and acceptable tool life. Our team provides practical guidance to help CNC router operators and production managers choose the right bit for each material and application.
Material guide. For aluminum and non-ferrous metals choose a single-flute or double-edged O-flute design with bright-polished flutes to prevent chip welding. For solid wood, MDF, and plywood a straight or up-spiral 2-flute design gives clean, fast cuts. For double-sided laminates, melamine, and veneered panels a compression bit is essential to avoid edge tearing on both faces. For plastics and acrylic, single-flute and down-cut designs reduce melting and produce transparent edges.
Coatings & shanks. Uncoated carbide bits suit natural timbers and plastics. TiN (gold) and TiCN (grey) coated bits extend tool life on abrasive composites, particleboard, and filled plastics, while polished-flute single flute bits suit aluminum. Match shank diameter to your collet capacity: 1/4" and 6mm for compact routers, 1/2" and 12mm for heavy-duty spindles requiring greater rigidity at higher feed rates.
With Over 30 Years of Industrial Expertise, DAH Marine supports UAE customers with dependable product availability, trade inquiries, and fast communication for router bit requirements across Dubai, Sharjah, Abu Dhabi, and GCC export markets.
Your CNC Router Bit Partner in Dubai
Router bit supply backed by industrial experience for UAE woodworking, sign-making, and fabrication workshops.
30+ Years Experience
Established Dubai supplier with decades of experience providing router bit solutions to industrial customers across the UAE.
Complete Router Bit Range
Single flute, 2-flute, compression, and carbide-tipped router bits for wood, aluminum, plastics, and composites.
UAE and GCC Support
Dubai stock with fast availability for local and regional router bit requirements.
Frequently Asked Questions
What CNC router bits do you supply in Dubai?
Which router bit is best for aluminum and plastics?
What is the difference between up-cut, down-cut, and compression router bits?
What shank sizes are available for CNC router bits?
Can you supply router bits for bulk orders?
